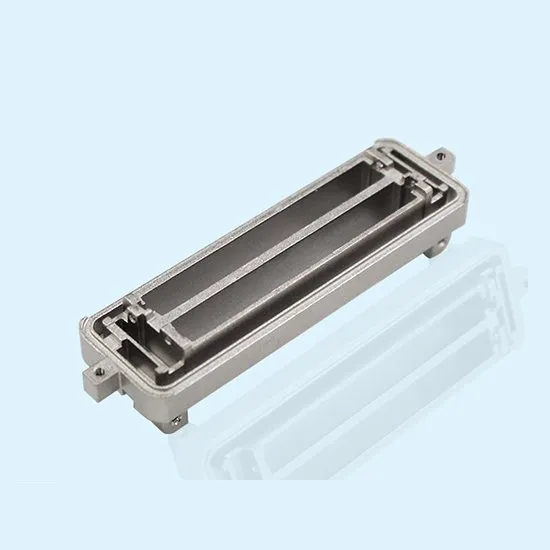

High Pressure Die Casting Mould Making Aluminum Alloy Conductive Medical Plug Shell

  1. Certificate: IAF16949
  2. Process Type: Aluminum precessure die cast
  3. Drawing Formats: 3D (STP or IGS); and 2D (DWG or PDF)
  4. Tolerance range: +/- 0.02-0.05mm
  5. Die casting Roughness: Ra 0.8-Ra12.5
  6. Mold and sample making time: 35days 7. Tooling service life: 100,000 to 150,000 shots
  7. NDA: Yes, we can sign it.
  8. Material: ADC12
  9. Weiht: 35g
  10. Application: medical equirement
  11. Finish: Nickle plating
  12. Salt spray test : 48H or more as your requirement
  13. Pakage: blister box, next to Carton
  14. Original place: Guangdong, China
Inquire Now

Developing Capability:

High pressure die casting mould making aluminum alloy conductive medical plug shell. As a one-stop zinc alloy and aluminum alooy die casting Chinese manufacturer, the casting housing from raw material to finish parts will experience a strict quality controled. And this product is used in medical industry. The project engineer will follow the case untill the casting sample is confirmed by customer.

Factory Show:

Factory Show:

Video Introduction:

Zinc Alloy Casting Production

Die Casting Part CNC Turning

Deburring
